MODEL：JLM-6320AU Working board thickness：2 ~ 45 mm Working board length：1800 ~ 2450 mm Working board width：900 ~ 1250 mm Working speed：5 ~ 40 M/min Operators need：2 - 3 workers Total motor power：51 HP Electric power for heating：60 kw Overall dimensions of the line（ L x W x H ）– 25800 x 6050 x 2200 /mm Weight：app x 21000 kgs

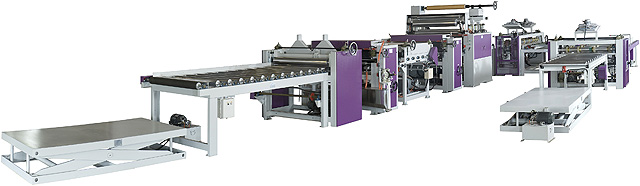

MODEL：JCH-6320UL Working board thickness：2 ~ 45 mm Working board length：1800 ~ 2450 mm Working board width：900 ~ 1250 mm Working speed：5 ~ 40 M/min Operators need：3 - 4 workers Total motor power：51 HP Electric power for heating：60 kw Overall dimensions of the line（ L x W x H ）– 18100 x 6440 x 2200 /mm Weight：app x 17000 kgs

■ LINE MODEL：

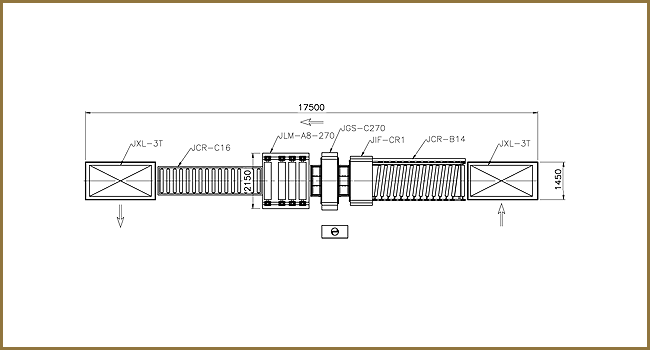

　JPA-8270CS – SINGLE SIDE HOT ROLL LAMINATING LINES

■ LINE MODEL：
JUA-8270CS – SINGLE SIDED HOT ROLL LMAINATING LINE – UF GLUE SYSTEM

■ LINE MODEL：
JUH-6320AFS – FULLY AUTOMATIC SINGLE SIDED HOT ROLL LMAINATING LINE – UF GLUE SYSTEM

■ LINE MODEL：
JUH-26320AFS – FULLY AUTOMATIC DOUBLE SIDED HOT ROLL LMAINATING LINE – UF GLUE SYSTEM

■ LINE MODEL：
JCH-6320UL – SEMI-AUTOMATIC SINGLE SIDED HOT ROLL LMAINATING LINE – UF GLUE SYSTEM
